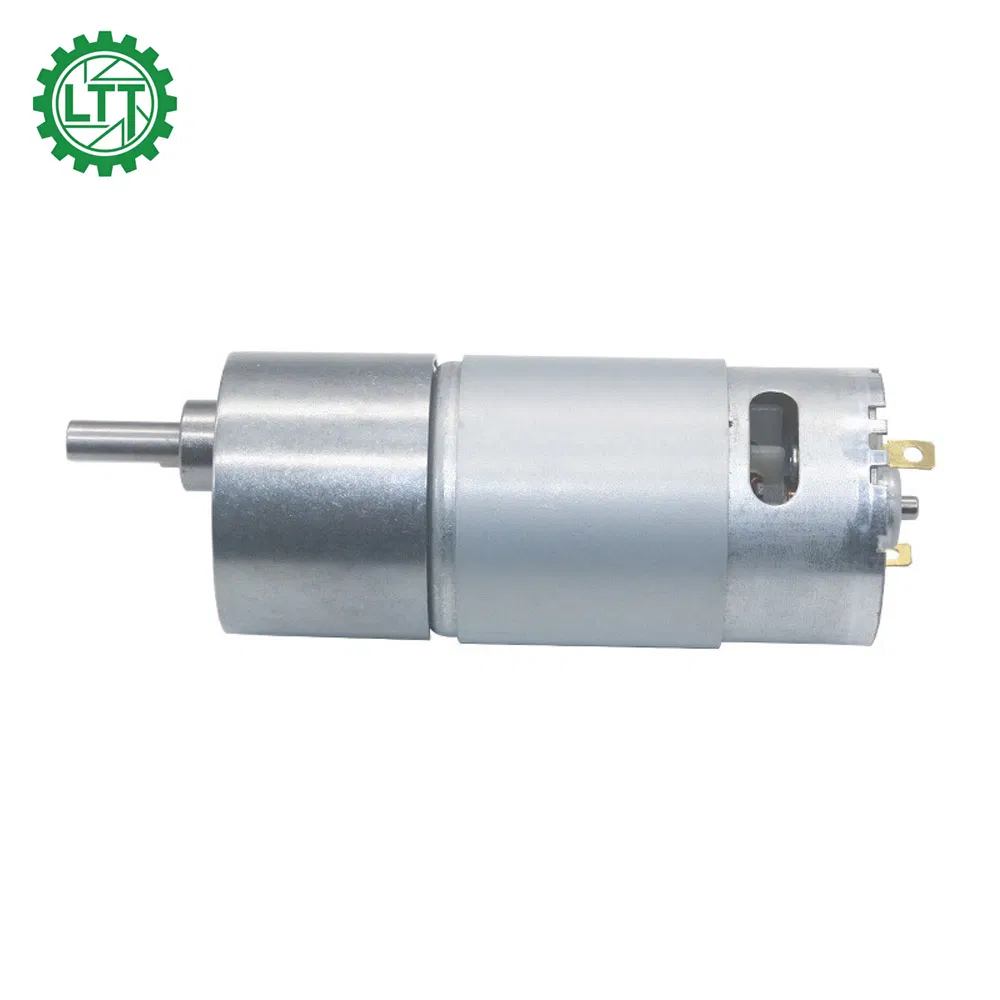

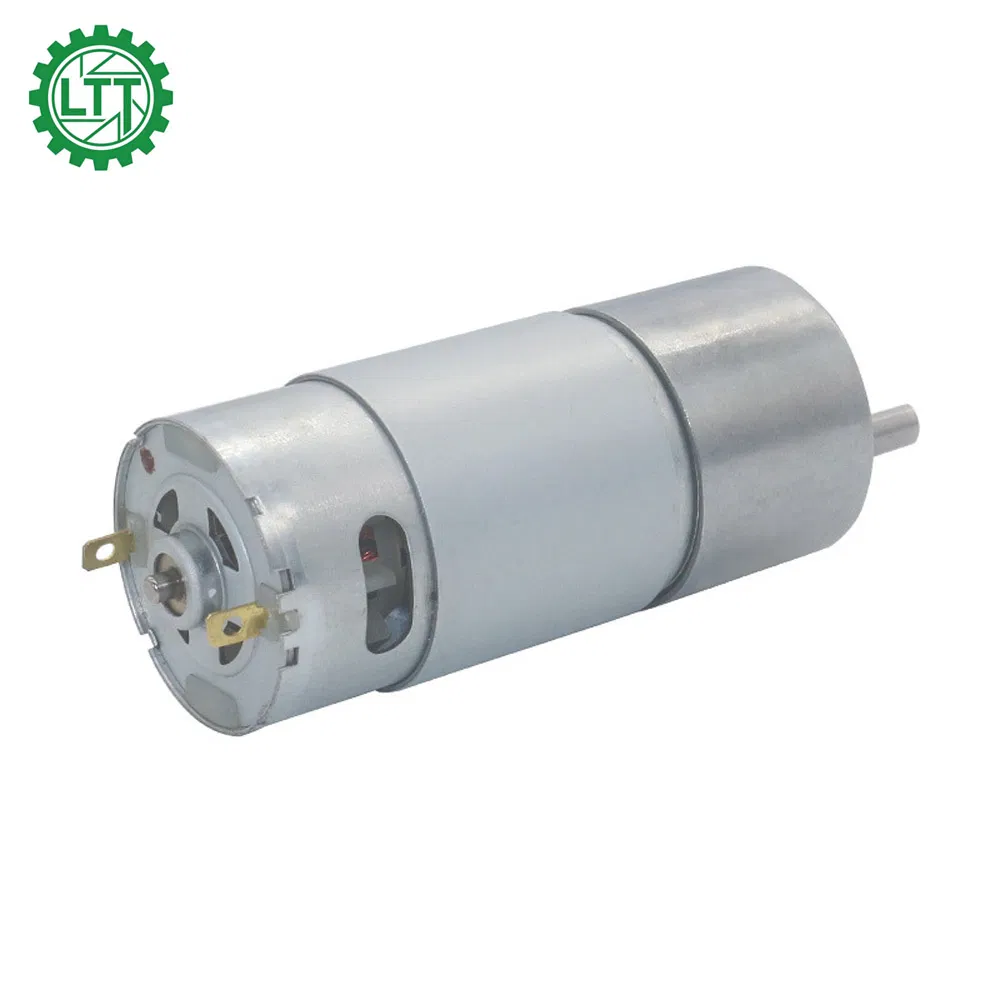

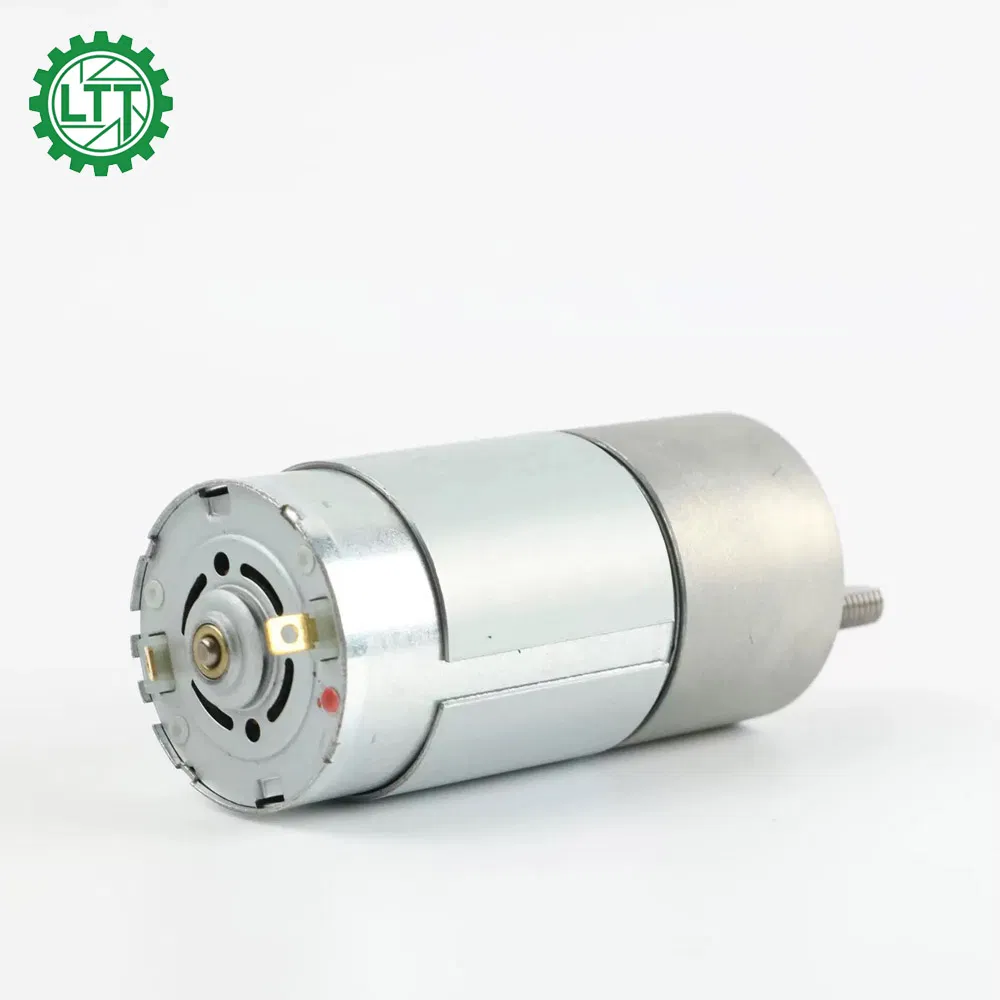

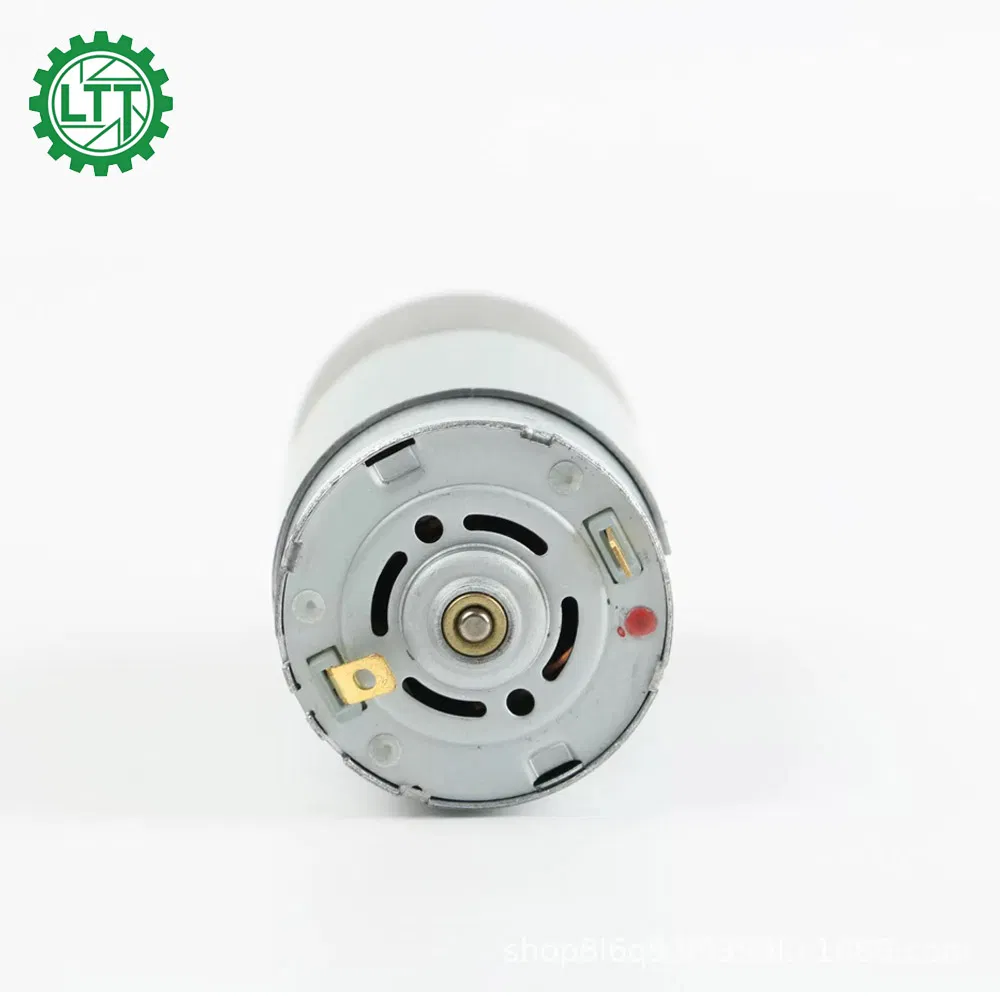

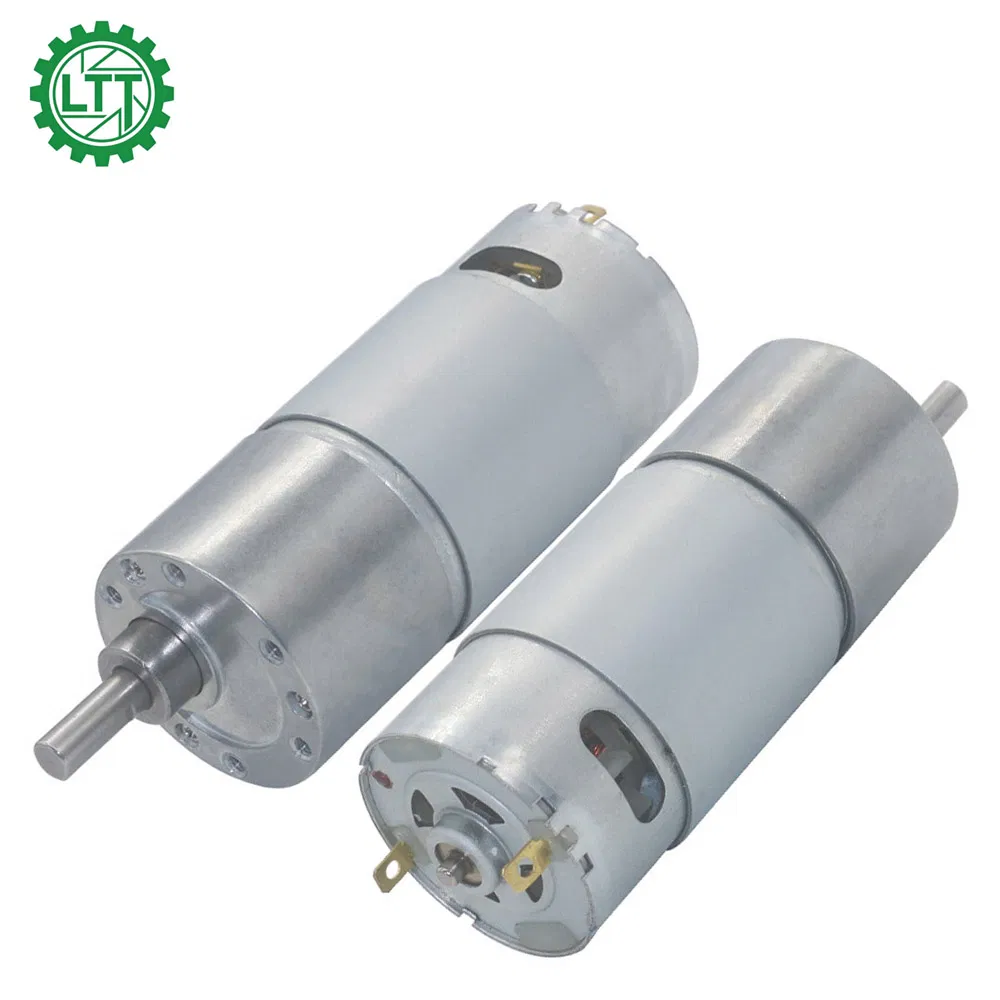

37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
1 / 5
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox

37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

■Basic Information
Model NO.
LGM37-550
Type
DC Gear Motor
Excitation Mode
Shunt
Function
Control, Driving
Number of Poles
2
Certification
ISO9001, CE, RoHS
Gearbox Size
φ37*L mm
Rated Voltage
6V 12V 24V
Commutation
Brush
Production Capacity
500,000 pieces/Month
■Product Description
37mm Diameter Micro DC Gear Motor Specifications
Model:LGM37-550 Type:DC Geared Motor
Voltage:3v-24v Speed:3rpm-2500rpm
Continuous Current:≤3A Stall Torque:≤20kg.cm
Typical Applications: Automotive Parts, Blender machine, Camera, Children toy car, Commercial Products, Handheld robot mower, Home Appliances, Vehicle TV Lifter, etc.
Gearbox Material: Steel, brass, plastic, powder metallurgy, zinc alloy

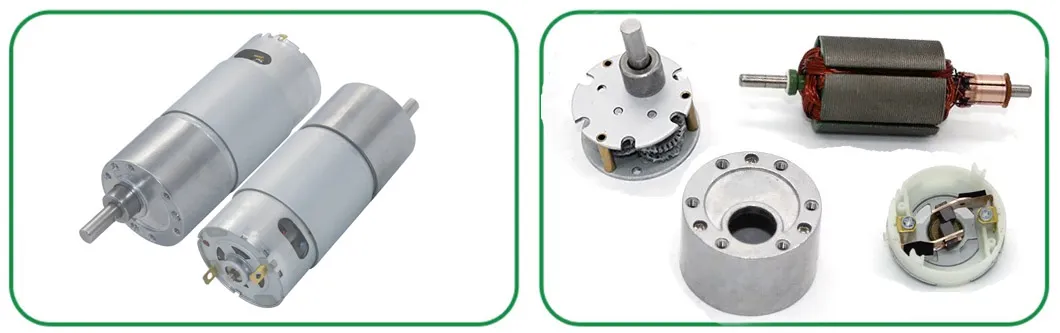

DC Gear Motor Overview

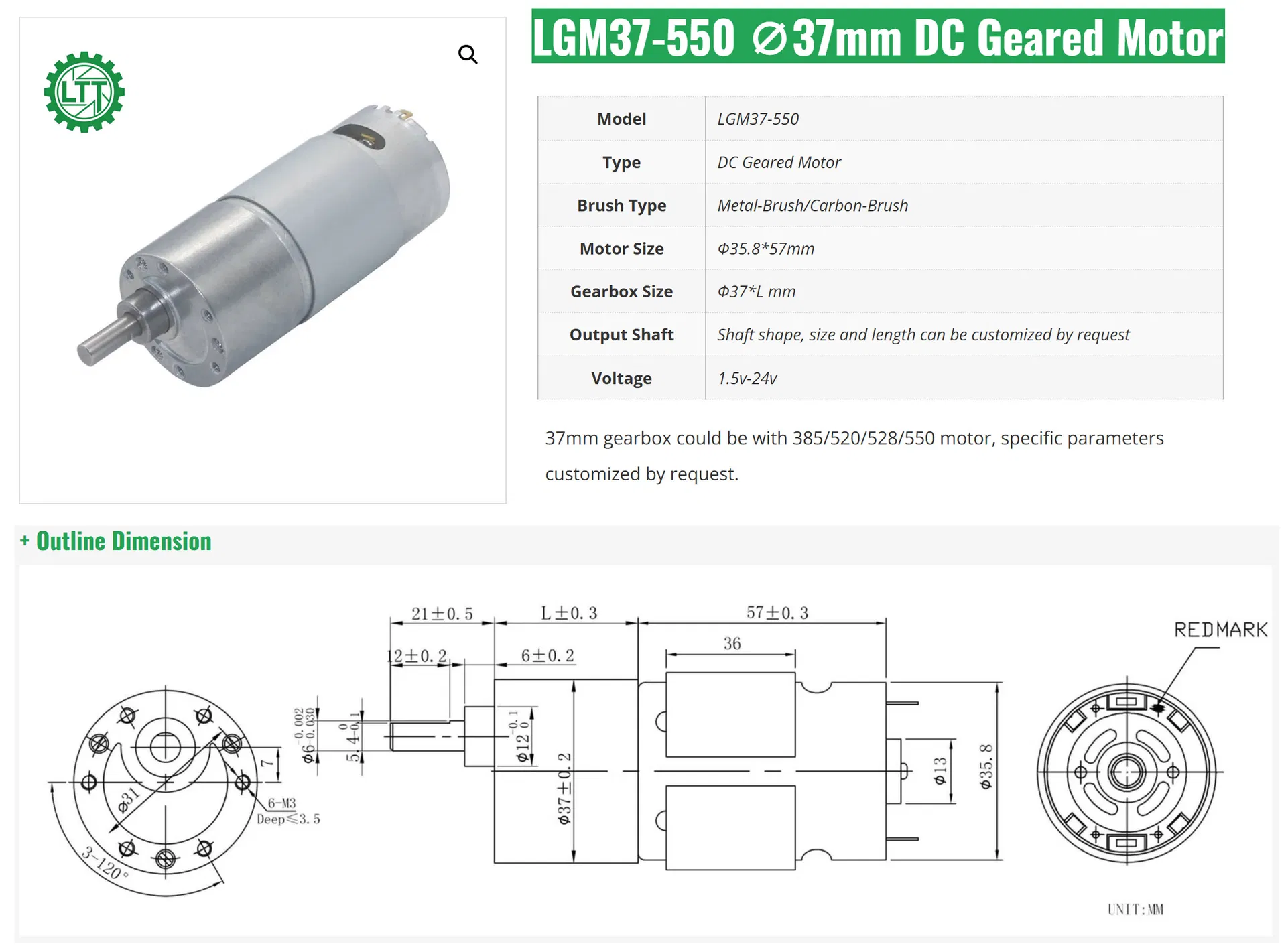

DC Gear Motor Detail
■Technical Specification

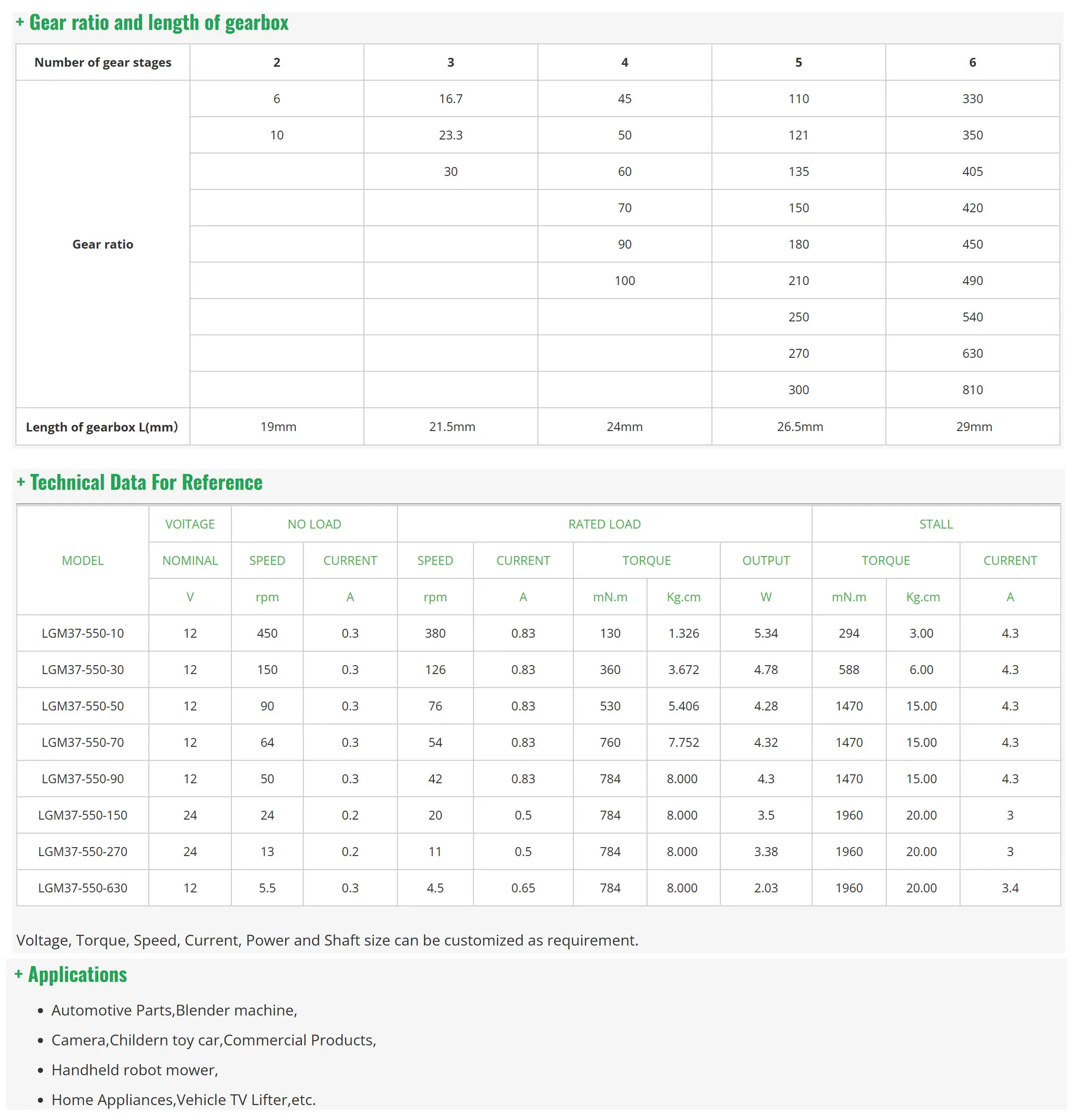

Motor Specification Chart
Dimensional Drawing

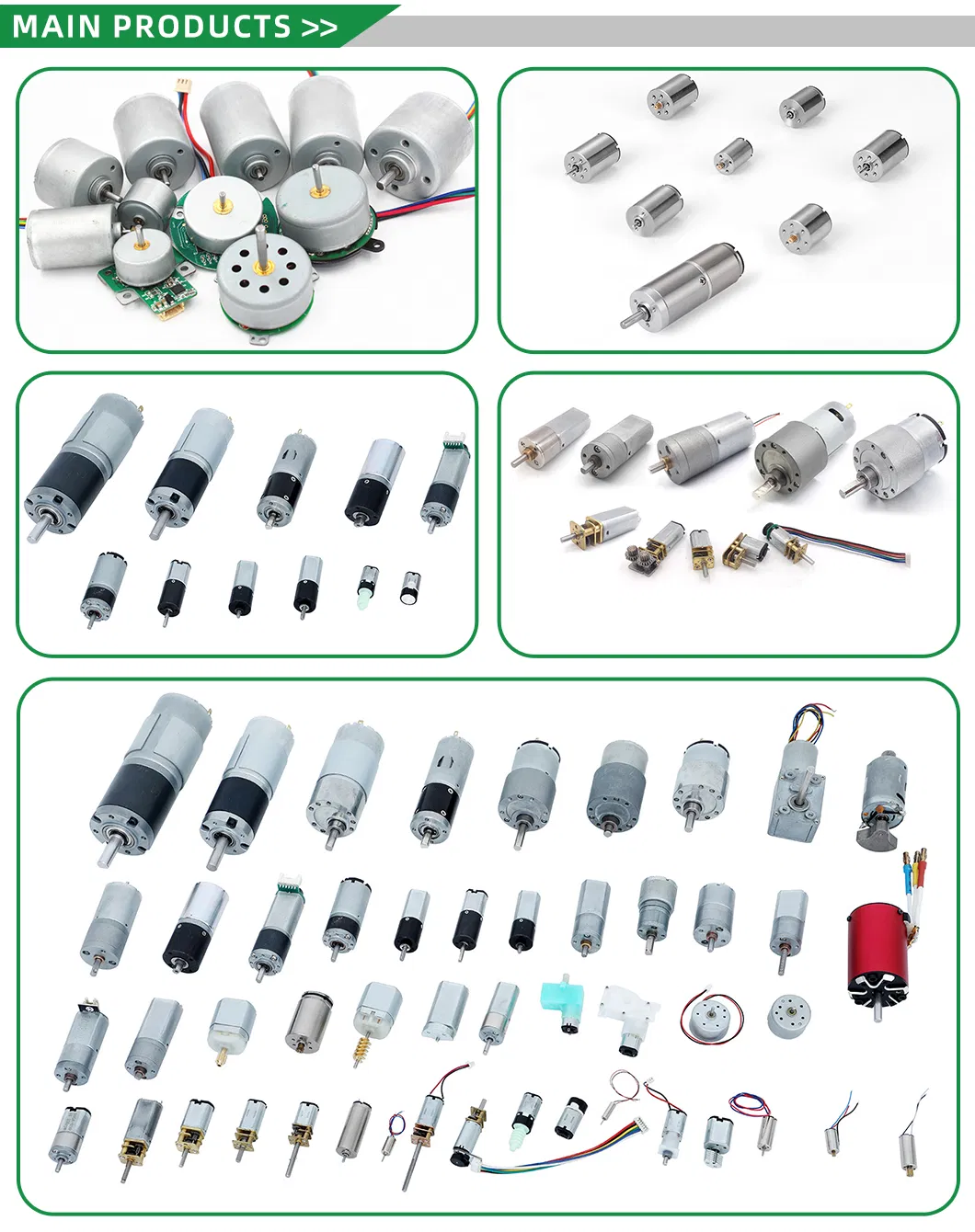

■Main Products Range
Product Range 1
Product Range 2
■Profile & Advantages

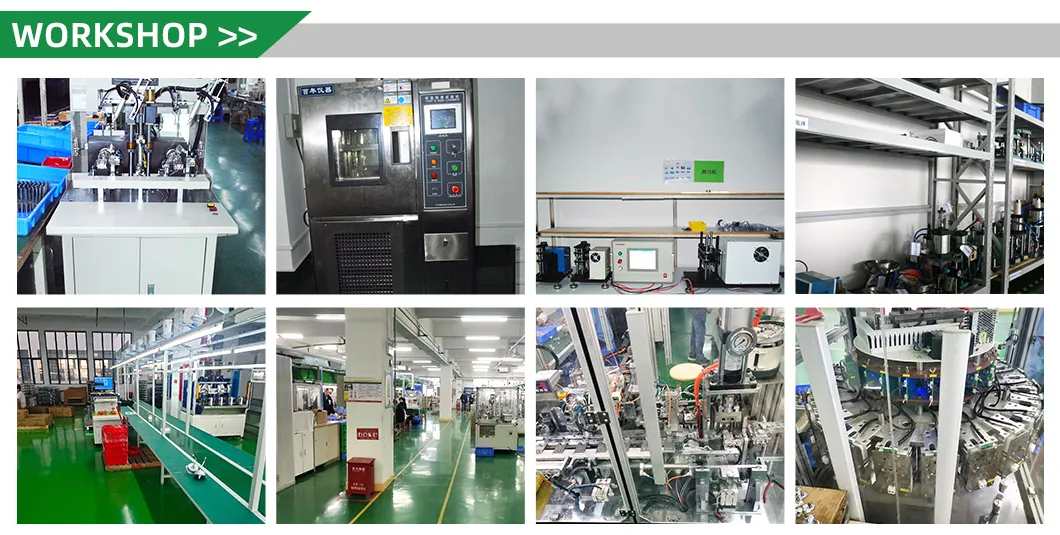

Workshop

Expertise in hardware modules, small gear modules, and miniature precision planetary gearboxes. Providing comprehensive drive system solutions for industrial tools, personal care, security, automotive, and healthcare devices.

✔
Customization: Customized solutions with 7-day sample production efficiency based on specific requirements.
✔
Certification: Quality control systems passing international safety certifications such as CE / RoHS / UL.
✔
High Quality Materials: Precision processed parts made of imported materials for enhanced durability.
✔
Long Service Life: Reliable performance for 3-20 years under standard use conditions.

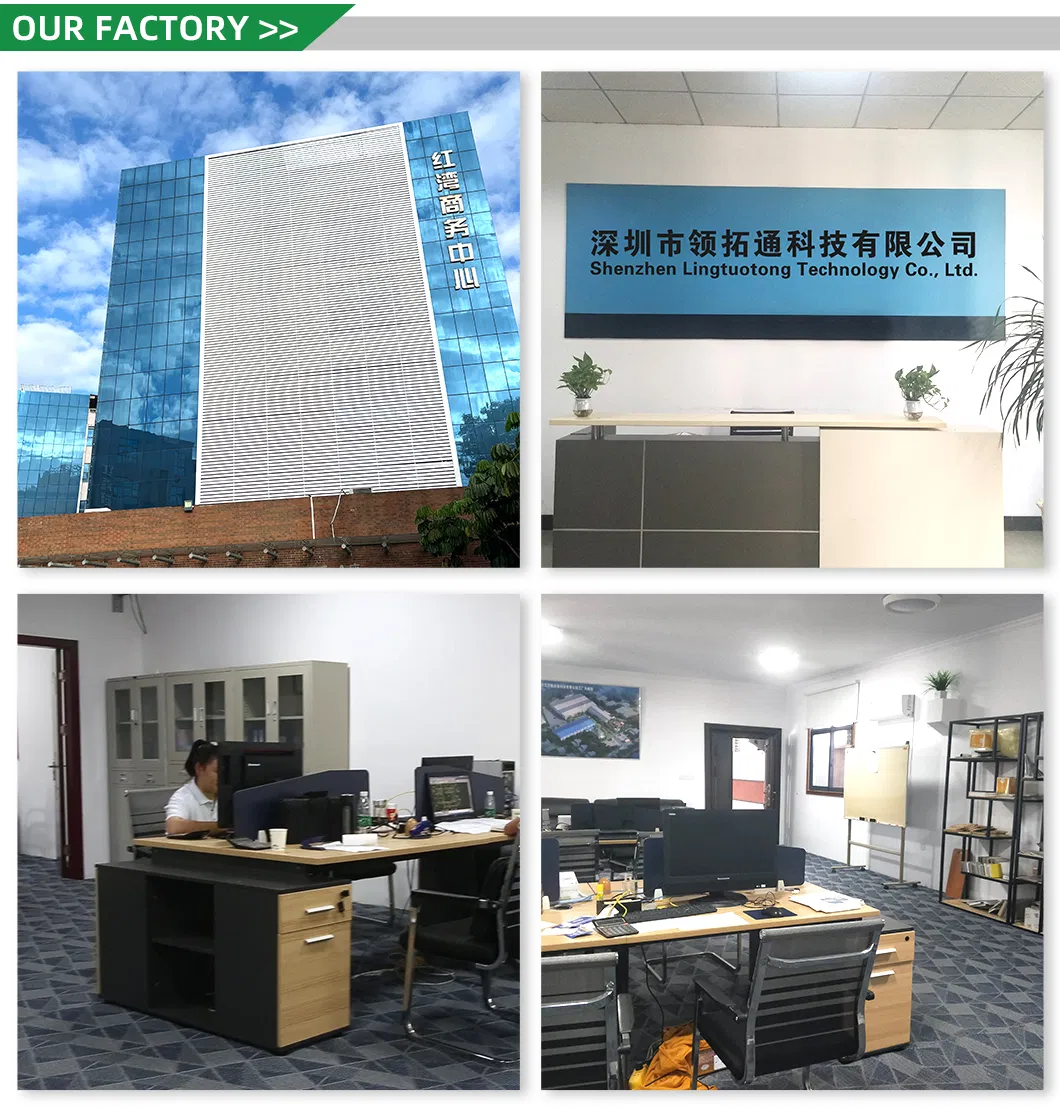

Equipment
Testing
■Certifications & Logistics
Cert 1
Cert 2
Packaging

Shipping method: Packing by crate, carton or pallet; Shipping by air, sea or express (DHL, FedEx, UPS, TNT).

■Frequently Asked Questions
Do you provide samples?
Yes. We provide samples for clients to test before mass production. The lead time usually is 7-15 days.
How to select a suitable DC Gear Motor?
Please provide details like voltage, speed, torque, motor size, working mode, life time, and noise level. If you have drawings or pictures, they will help us recommend the best model.
Do you offer customized services?
Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add wires, connectors, capacitors, or EMC components.
Do you have products in stock?
We do not keep items in stock. All products are manufactured based on specific orders.
How are the goods shipped?
We ship goods by air (express services like DHL, FedEx, UPS) and by sea, depending on your preference and volume.
What are the payment options?
We accept T/T in advance, as well as PayPal and credit card payments.
